Smart Access

An IoT Access-Control Solution Designed For Hotels, Apartments And Property Operators

The Qumtrix LTE CAT M1 & NB Smart Lock is a robust IoT solution tailored for B2B clients. Supporting global multi-band LTE CAT M1&NB-IoT with superior signal penetration, it ensures seamless connectivity in complex environments. With ultra-low 14µA power consumption, OTA upgrades, and NXP/AWS security, it significantly reduces O&M burdens while ensuring compliance, empowering businesses to achieve rapid commercialization.

Get a Quote See Specs
Q1 Smart Lock — lifestyle and product detail (1280×602) Q1 Smart Lock — one station IoT solutions for smart locks (1280×602)
Engineering Drawing

Engineering Drawing. One Lock.

Complete mechanical specification — exterior view, cross-section, and interior view on top; isometric exploded assembly view below. Designed for installers, integrators, and certification reviewers.

Q1 Smart Lock — exterior view, cross-section, interior view, and exploded assembly drawing

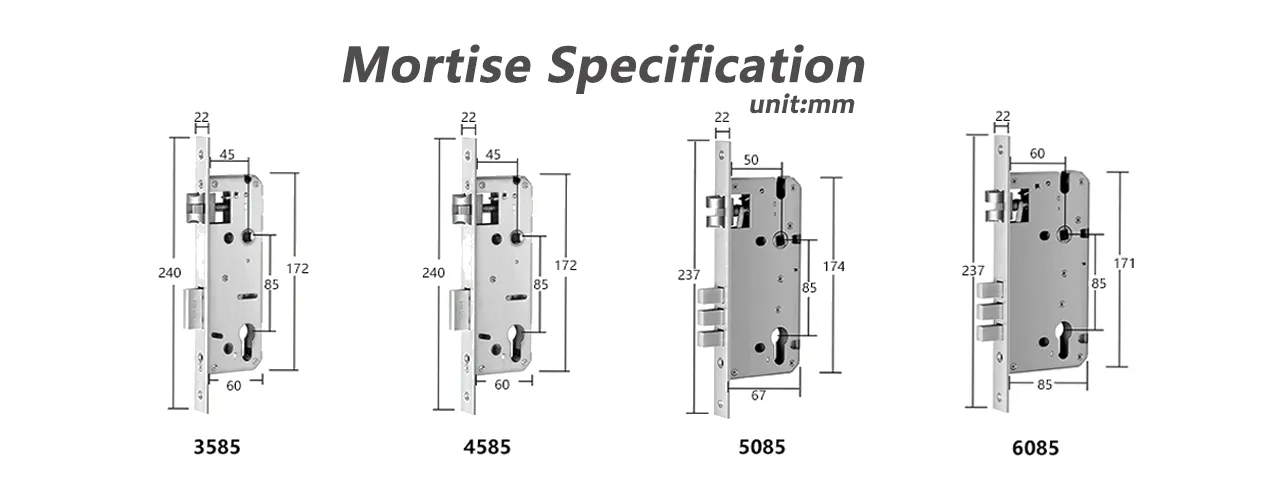

Q1 Smart Lock Mortise Specification - 4 Models (3585 / 4585 / 5085 / 6085)

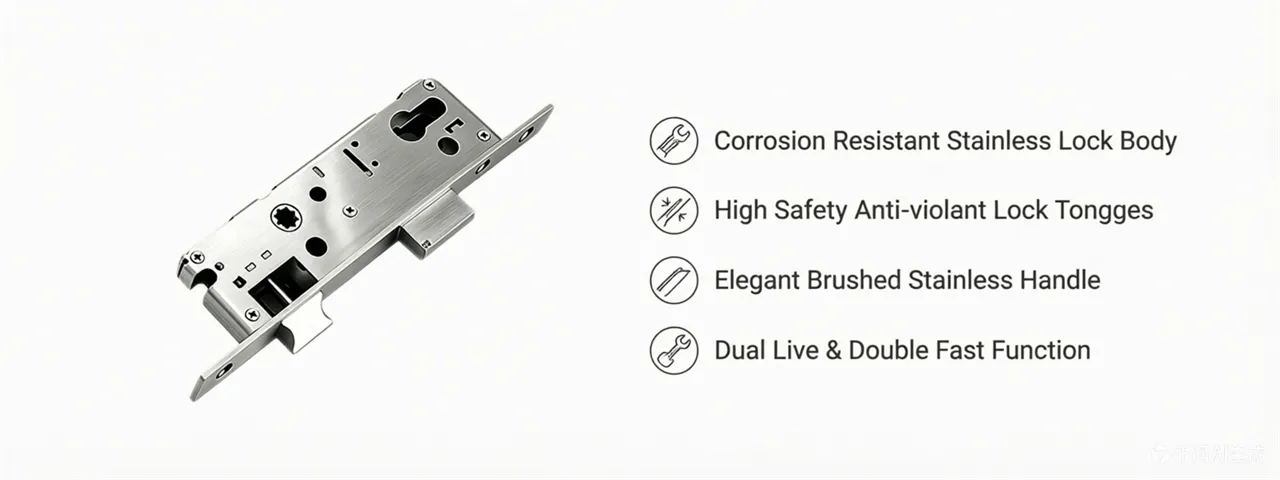

Q1 Smart Lock - Lock Body Features: Corrosion Resistant Stainless Body, High Safety Anti-violent Lock Tongues, Elegant Brushed Stainless Handle, Dual Live & Double Fast Function

Why Operators Choose Q1

Seamless Connectivity

Supports global multi-band LTE Cat M1 & NB-IoT networks, ensuring stable access and hassle-free deployment across different regions.

Reliable in Complex Spaces

Superior signal penetration guarantees flawless operation in basements and high-rise buildings, preventing tenant lockouts.

Top-Tier Security

Features NXP Desfire EV3 encrypted chips and AWS cloud encryption to fully protect tenant data and meet strict compliance standards.

Ultra-Long Battery Life

With power consumption as low as 14µA, it drastically reduces the frequency of battery replacements and maintenance visits.

Effortless Remote Management

Supports OTA remote upgrades, allowing property managers to update firmware instantly without costly on-site visits.

Cost-Effective Operations

Combines durable hardware with low maintenance needs, empowering businesses to maximize efficiency and accelerate commercial success.

Technical Specifications

CategorySpec
CellularLTE Cat M1 / NB-IoT, multi-IMSI eSIM, 23-country coverage
Power4×AA batteries, 18-month typical life, low-battery alerts
MaterialsZinc alloy + tempered glass, IP65 rated
ConnectivityBluetooth 5.0, NFC fallback, OTA firmware updates
Lock CylinderEuro profile (DIN 18252) + oval/rim adapter kits, 30-70mm door thickness
CertificationsCE, FCC, RCM (Australia), RED (EU), ISO 9001 / 13485 aligned
CybersecurityAES-256, secure element, mutual TLS to cloud
CloudQumtrix Cloud, MQTT / LwM2M, AWS / Azure / on-prem
Access MethodsMobile app (iOS/Android), PIN, NFC card, mechanical key override
Audit Log10,000 events stored on-device, mirrored to cloud
Operating Temp-20 °C to +55 °C
Dimensions165 ×68 ×78 mm (H ×W ×D), 720 g
Use Cases

Built For Shared Living

From boutique hotels to multi-tenant buildings, Q1 unlocks operations that legacy key systems cannot.

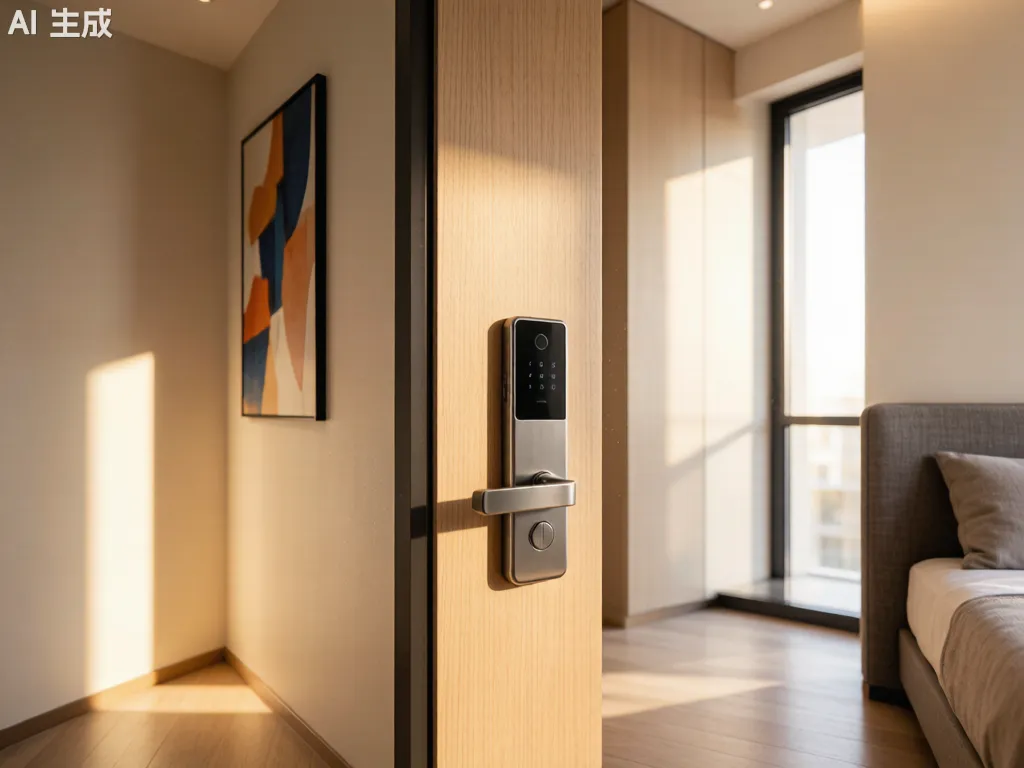

Q1 Smart Lock - Boutique Hotels and Resorts
Hospitality

Boutique Hotels & Resorts

Issue mobile keys the moment a guest checks in. Re-key the entire property between bookings in seconds — no front desk, no plastic cards, no locksmith.

Q1 Smart Lock - Apartment Buildings
Multi-Tenant

Apartment Buildings

Property managers send temporary PINs to movers, cleaners, and maintenance. Tenants share eKeys with family from anywhere in the world.

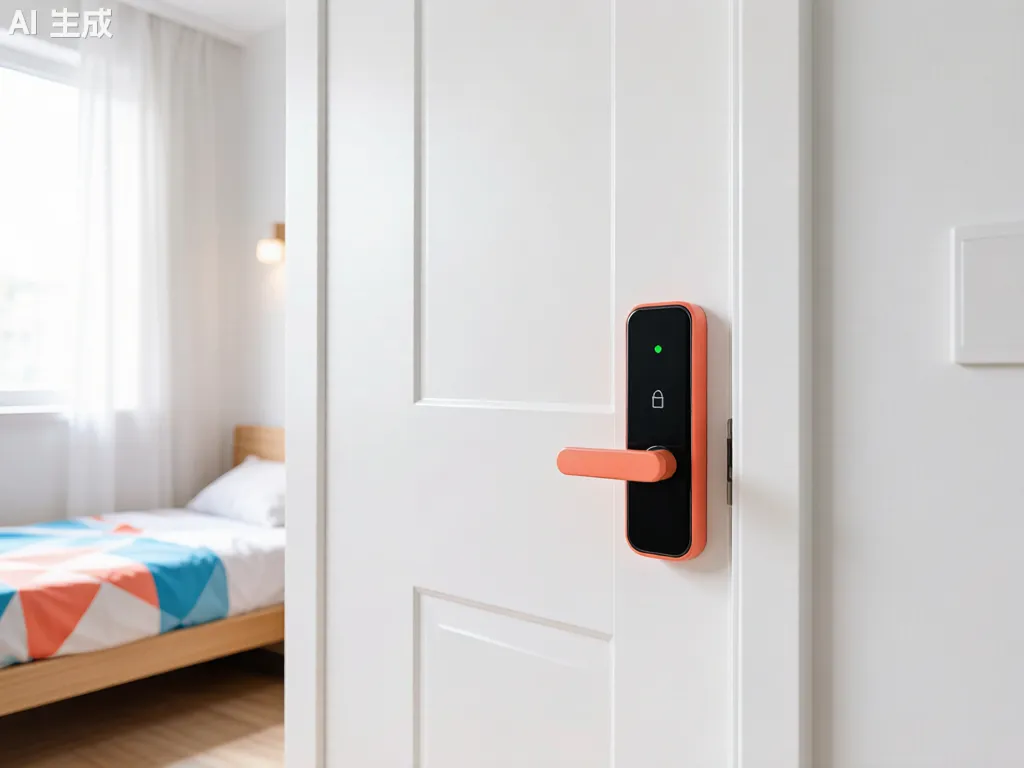

Q1 Smart Lock - Student and Co-Living
Student Housing

Student & Co-Living

Turnover every semester? Issue, revoke, and audit 500+ locks from a single dashboard. No lockout fees, no after-hours calls.

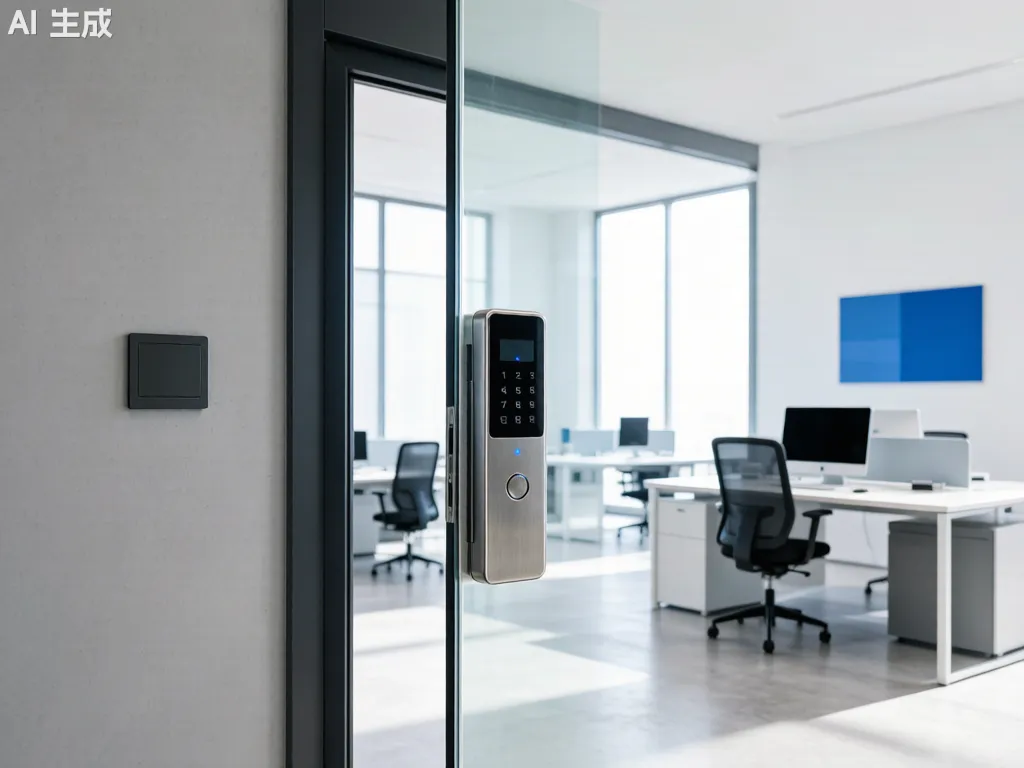

Q1 Smart Lock - Offices and Co-Working
Commercial

Offices & Co-Working

Members access meeting rooms and private offices with their phone. Time-bound permissions expire automatically when subscriptions end.

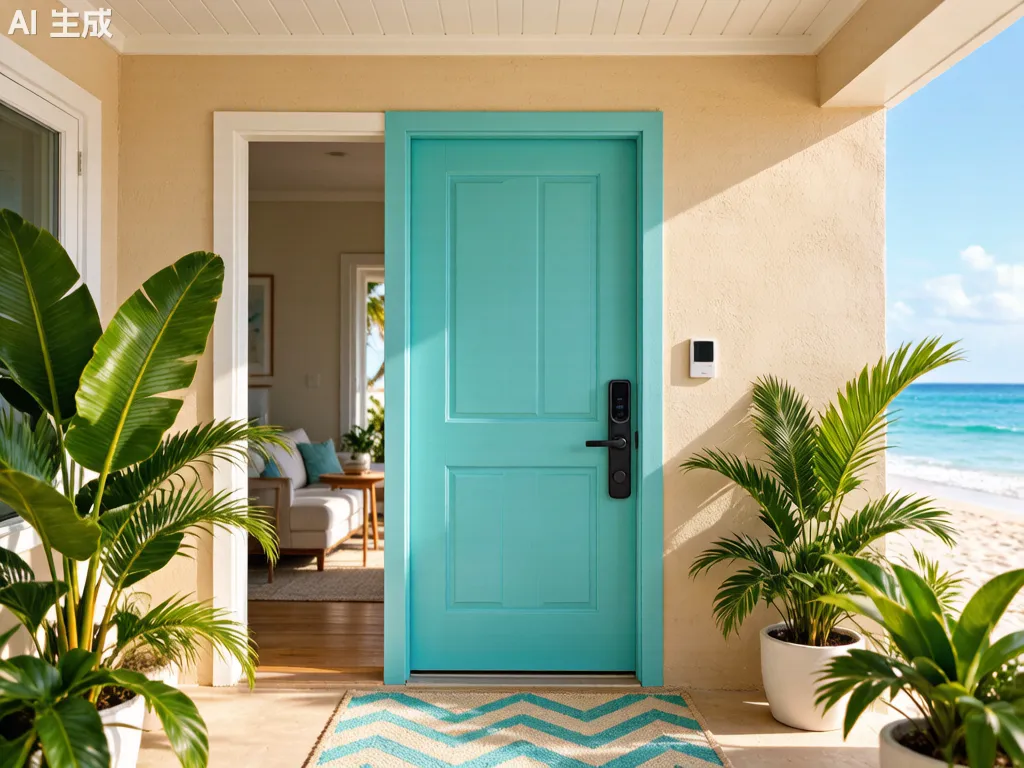

Q1 Smart Lock - Vacation Rentals
Short-Term Rental

Vacation Rentals

Self check-in at any hour. Generate guest codes that auto-expire at checkout. Skip the lockbox, skip the coordination.

Q1 Smart Lock - Campus and Facility Management
Enterprise

Campus & Facility Management

Centralize 1,000+ doors across multiple buildings. Audit every entry, override remotely, integrate with SSO and HRIS systems.

Ready to deploy Q1 Smart Lock?

Tell us your units, region, and use case. We will get back with pricing and a sample plan within 2 business days.
