The VEIN2 palm vein split lock delivers sub-second biometric recognition
with anti-spoof precision, and an EN 16284-certified split-body architecture.
Six major technological breakthroughs redefining the security standard and user experience of smart locks
Powered by NXP DESFire EV3 chip with Common Criteria EAL5+ certification. Supports DES/3DES/AES encryption, dynamic session keys, and physical tamper resistance.
Built on the STM32N6 series with integrated Neural-ART NPU delivering 600 GOPS. Enables local data processing and millisecond-level intelligent decision-making.
Near-infrared scanning of subcutaneous vascular patterns with liveness detection. FAR below 0.0001%. Unaffected by skin surface conditions, suitable for all ages.
All-in-one cellular System-in-Package with LTE-M/NB-IoT/NB-NTN, DECT NR+, and GNSS. Arm Cortex-M33 @ 64 MHz with TrustZone security. Global bands, pre-certified.
Standby current as low as 10μA, delivering up to 5 years of battery life. nRF9151 Power Class 5 (20 dBm) extends battery life even further in massive IoT deployments.
European standard split design physically separates the control panel from the lock body for enhanced anti-tamper performance and weather resistance.
Every recognition runs locally on the device — no round-trip, no cloud dependency. Inference, liveness and anomaly detection are fused on a high-performance NPU for millisecond-level decisioning.
Dedicated neural engine runs vision + sensor fusion on-device.
Sub-second verification from capture to unlock, even offline.
Local decisioning keeps data on-device and latency flat.
SPOOF rejection and tamper alerts handled at the edge.
True hardware-grade acceleration, sub-millisecond latency, and extreme efficiency — engineered for always-on edge intelligence.
A dedicated neural-network hardware acceleration engine removes the performance bottleneck of CPU-software-simulated networks — enabling efficient hardware-level execution of multi-layer CNNs and lightweight Transformer models.
Leveraging the NPU’s high throughput and parallel-compute architecture, local inference latency drops sharply — complex object detection, face recognition and high-frequency industrial vibration analysis all respond in real time on-device.
Built for low-power edge scenarios: running the same AI task, the NPU consumes only a tiny fraction of a traditional CPU’s power — greatly extending battery life while substantially reducing system heat.
The nRF9151 is a compact, all-in-one System-in-Package (SiP) that integrates everything needed for advanced cellular IoT — from terrestrial LTE-M/NB-IoT to satellite NTN connectivity.
System-in-Package Cellular IoT Module
Dedicated application processor with 1 MB Flash and 256 KB RAM, ready to run complex edge applications and enable powerful local computing.
Hardware-based security isolation with cryptographic acceleration, ensuring secure boot, secure firmware updates, and protected key storage.
Pre-certified for global operation across LTE bands 1-5, 8, 12, 13, 17-20, 25, 26, 28, 65, 66, 85 (700-2200 MHz). One SKU for worldwide deployment.
VEIN2 employs the same security standards as electronic passports and banking systems, building a comprehensive protection architecture from hardware chips to software algorithms.
Dual IC hardware and software certification per ISO/IEC 15408
DES/3DES/AES multi-algorithm support with dynamic session keys preventing replay attacks
Active shielding, voltage/frequency sensors, and light sensors for multi-layer protection
Professional-grade hardware built for security
| Capability | Specification | Field benefit |
|---|---|---|
| Ingress protection | IP65 | Dust-tight, resists low-pressure water jets for outdoor mounting |
| Operating temperature | Negative 25 to positive 70 degrees Celsius | Stable across unheated corridors and sun-exposed gates |
| Mechanical architecture | European split design | Control panel separated from mortise body for easier service |
| Lock body material | 304 stainless steel | Grade C true mortise cylinder for forced-entry resistance |
| Door thickness range | 40 to 120 millimetre | Compatible with security doors and standard wooden doors |
| Unlock modalities | Palm vein, NFC, remote, mechanical key | Multi-modal fallback chain for every access scenario |
How VEIN2 outperforms conventional solutions
| Dimension | VEIN2 Palm Vein | Fingerprint | 2D Face |
|---|---|---|---|
| False Accept Rate | < 0.0001% | 0.001% - 0.1% | 1% - 2% |
| Liveness Detection | |||
| Wet/Dirty Hands | No Effect | Severe Impact | Partial Impact |
| Anti-Spoofing | Extremely High | Replicable | Photo/Video Attack |
| User Coverage | 99.9% Coverage | Elderly/Children Limited | Twins Hard to Distinguish |
| Security Chip | EAL5+ Financial Grade | Standard M1 Card | No Hardware Encryption |

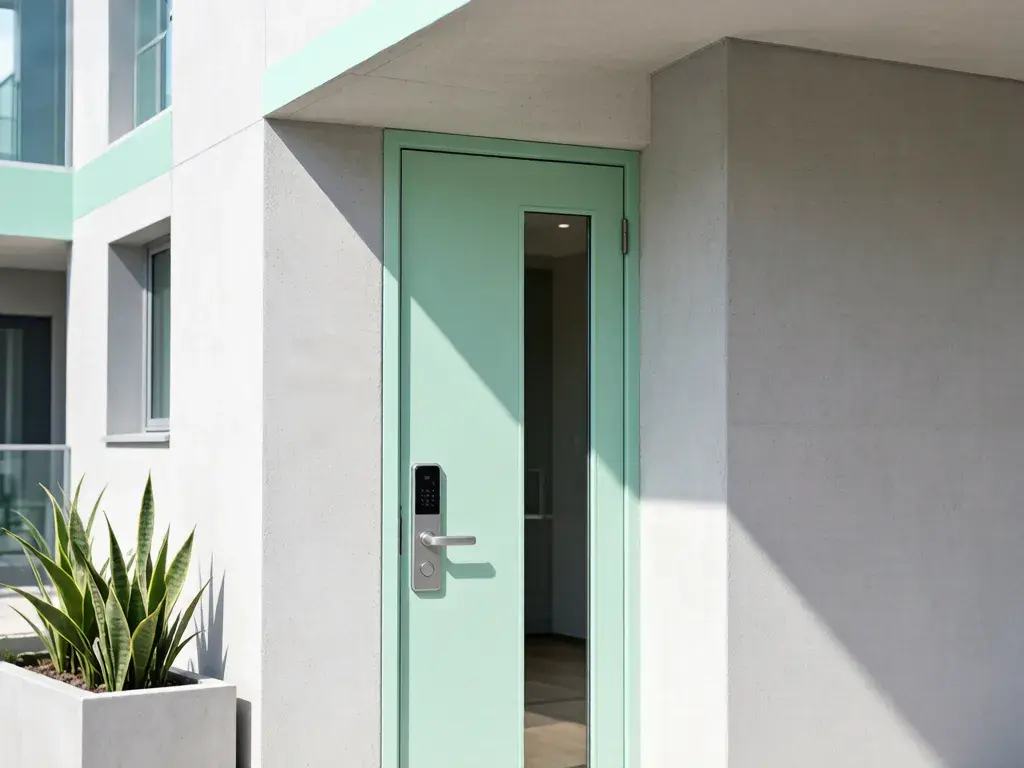

Make home security smarter with convenient, precise keyless entry.

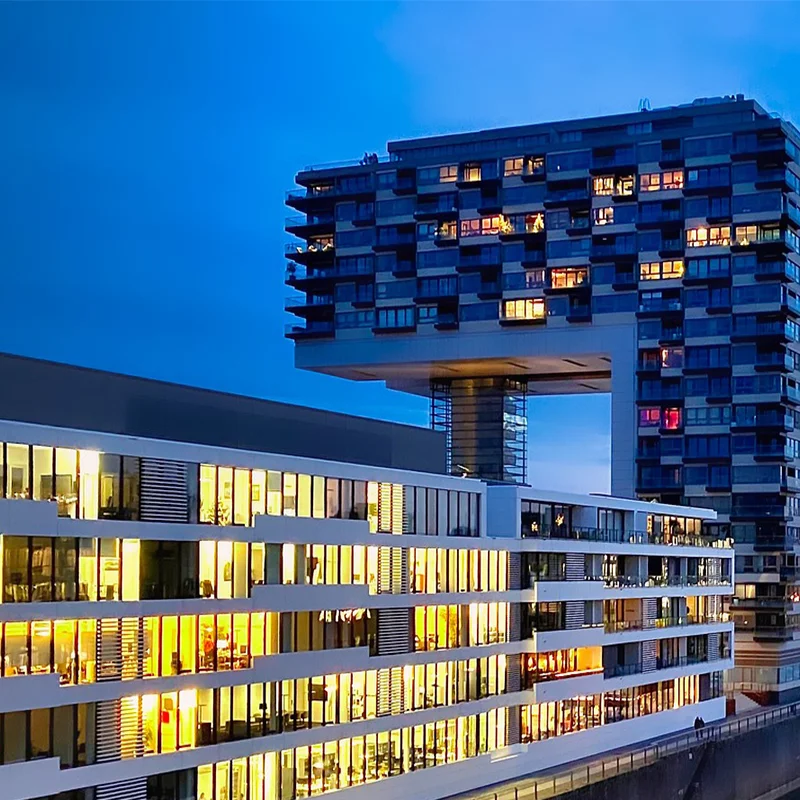

Centralized remote authorization with flexible tenant access management.

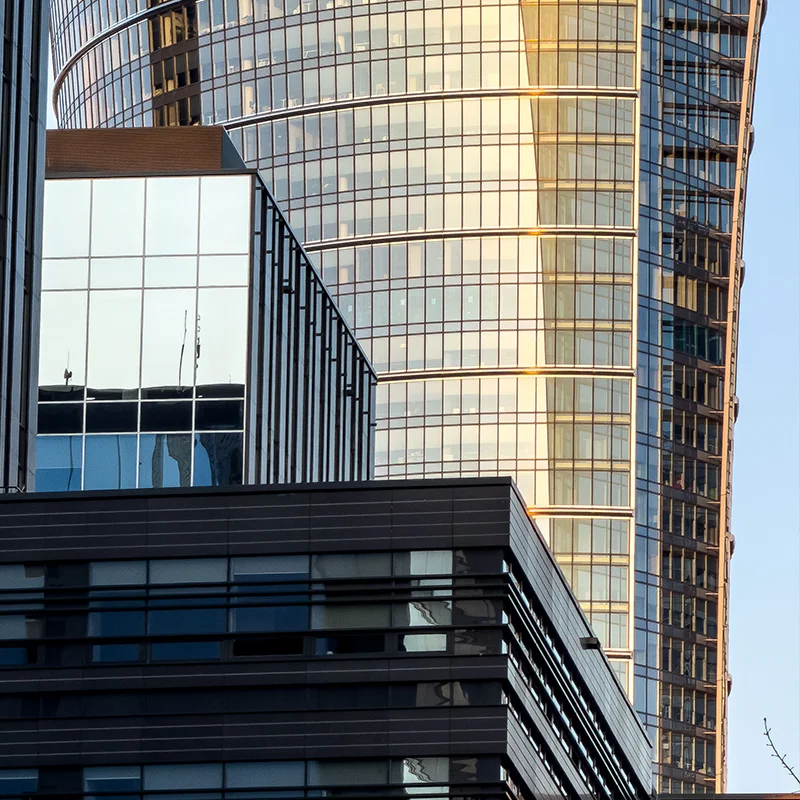

Remote management and access control for efficient, secure workplaces.

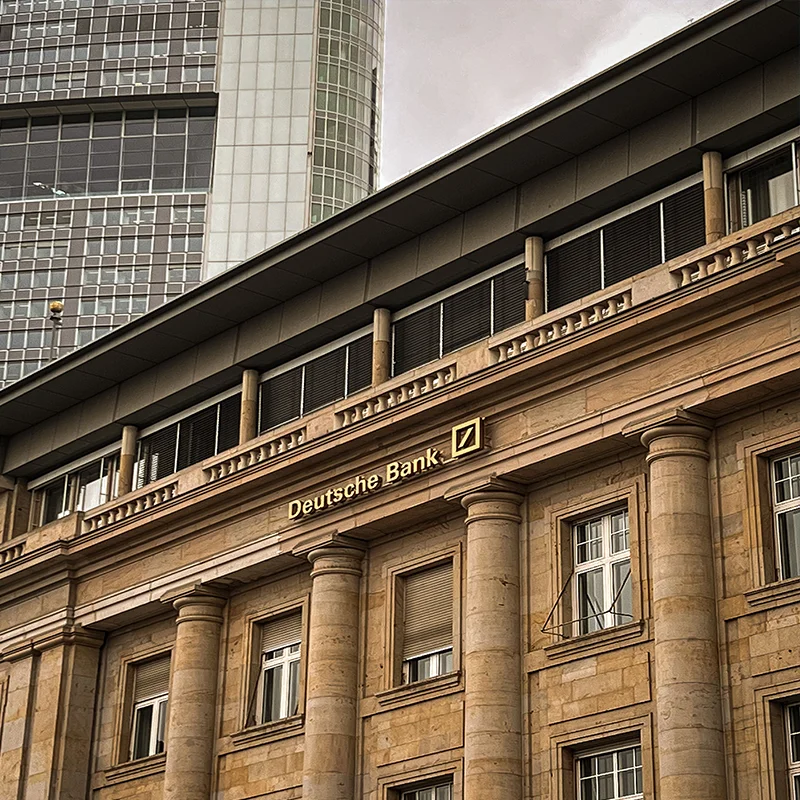

Ideal for banks, research institutes, and government facilities.
The technical questions that come up before specifying a palm-vein biometric lock.
A palm-vein reader identifies the vein pattern beneath the skin instead of a surface fingerprint, so the reading is not affected by wet, dry or worn skin — a common reason site teams move away from fingerprint readers on shared residential doors. VEIN2 pairs the palm-vein reader with an LTE-M / NB-IoT radio, so no local gateway is required at the door.
The Nordic nRF9151 SiP used on VEIN2 is NB-NTN capable, so the hardware can fall back to non-terrestrial (satellite) NB-IoT. Whether NTN is usable in a given deployment depends on the operator’s NTN service and the site radio plan — we confirm both during the technical evaluation instead of assuming availability at quotation.
Standby current of the nRF9151 SiP is as low as 10 µA, and the published figure for a standard configuration is 8 months of operation on the battery set. Access frequency, lock and handle duty, radio coverage quality and reporting interval are the four variables that move it most; the Power Class 5 (20 dBm) setting also trades uplink range against battery life.
Choose VEIN2 European Standard Split Lock. You're not just locking a door — you're opening the gateway to intelligent, secure living.
