Smart Access CE / FCC / RED (EU) certified

Global coverage LTE Cat-M1 & NB Smart Lock
for B2B Deployments
Gateway-free connected access for hotels, apartments, co-living and offices

Designed for operators, integrators, and manufacturers that need to deploy connected access control at scale. Compatible with LTE Cat M1 and NB multiband, it delivers reliable connectivity across regions and installation environments. With ultralow 14 μA consumption, OTA updates, NXP DESFire EV3, and AWS-based security, it helps reduce maintenance and simplify management of multiple doors.

Get a Quote Download Datasheet & Hardware Manual (PDF)

LTE Cat M1 and NB Cellular Smart Locks for Global Deployments

IoT Connectivity · NB Smart Lock Series

Connected Access Control Without Additional Local Infrastructure

Based on the Telit ME310G1-WW module, the NB Series integrates LTE Cat M1 / NB cellular connectivity and secure cloud communication to simplify connected access control deployments.

Connectivity
LTE Cat M1 / NB
Bands
B28 · 24 global bands
Cloud
End-to-end encryption with AWS
Security
TLS · AES-256
Protocol
MQTT / LwM2M
Credential
Encrypted NFC credential with NXP DESFire EV3
LTE bands · Native NB
B1B2B3B4B5B8B12B13B14B18B19B20B25B26B27B28B31B66B71B72B85B87B88

Adaptable to Different Door Configurations

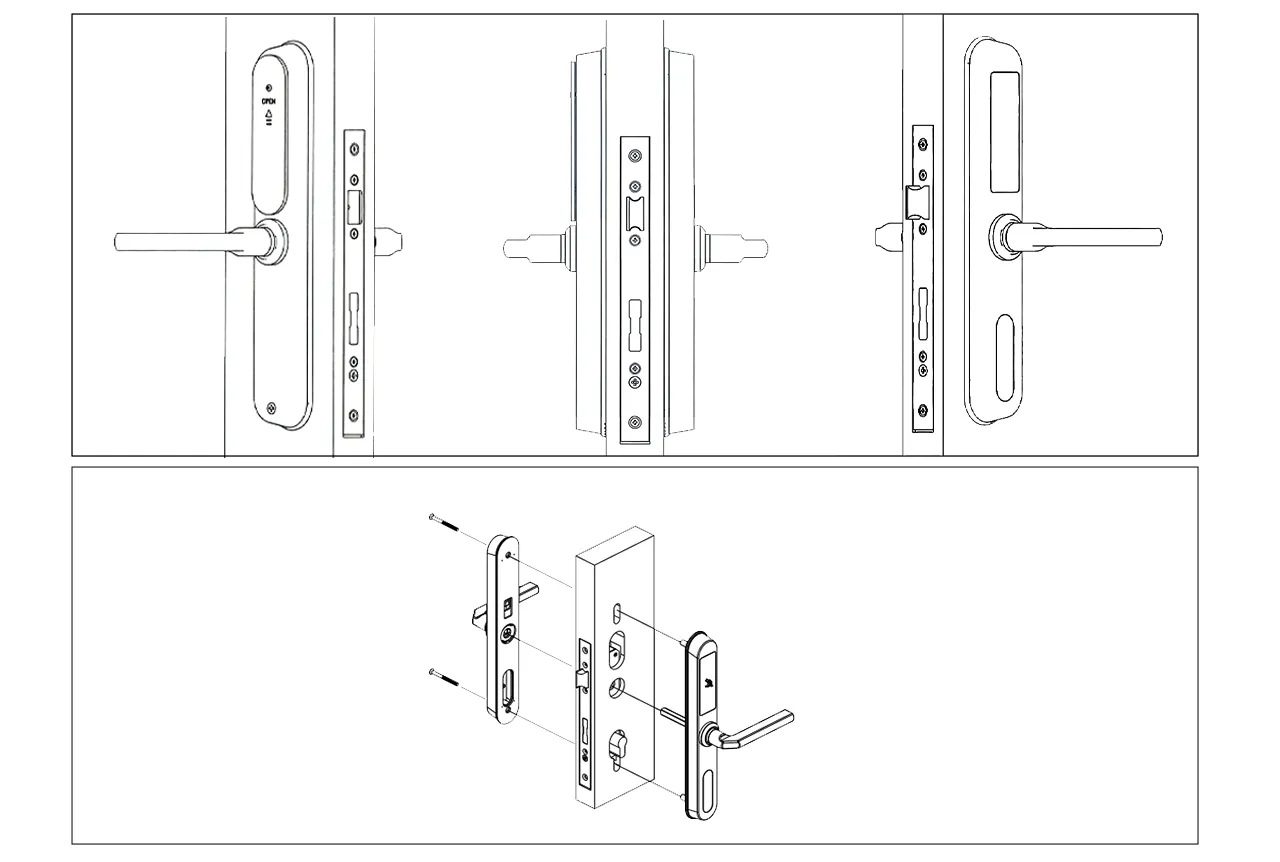

engineering drawing of the NB smart lock

A Platform Adaptable to Your Project

Choose from four mortise profiles: 3585 / 4585 / 5085 / 6085. Adapter kits and support for 30–70 mm doors make it easier to adapt the solution to different installation configurations.

ItemSpecification
Mortise profiles3585 / 4585 / 5085 / 6085 — European profile (DIN 18252)
Door thickness30–70 mm
Adapter kitsOval and edge adapter kits for additional profiles

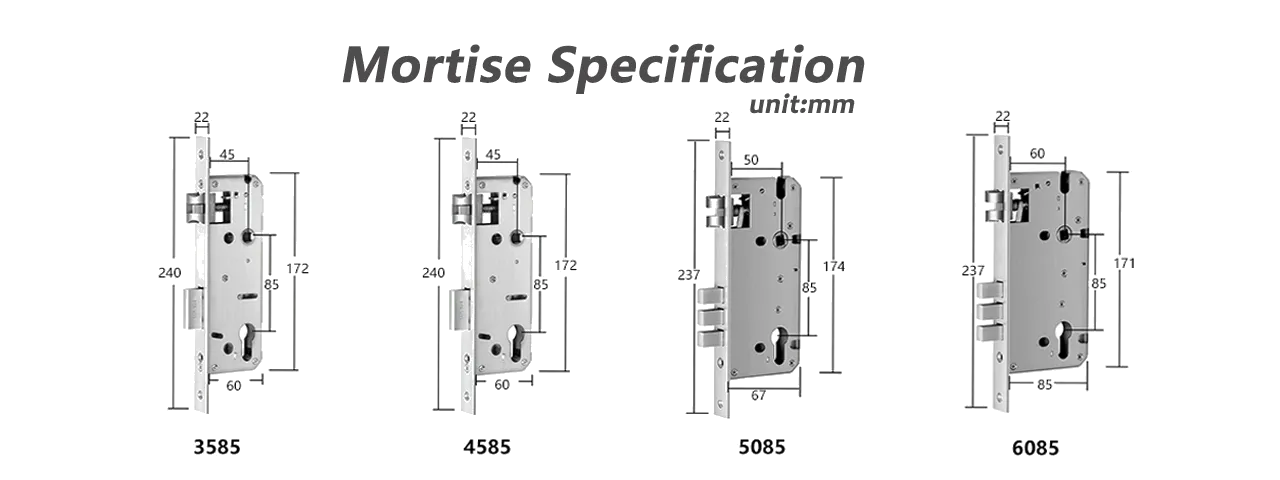

NB smart lock mortise specification - 4 models (3585 / 4585 / 5085 / 6085)

Why Operators Choose the NB Series

Global Multiband Cellular Connectivity

Supports LTE Cat M1 and NB multiband to ease deployments across regions and reduce dependence on additional local infrastructure.

Designed for Challenging Environments

Signal penetration helps maintain reliable connectivity in demanding locations such as basements and high-rise buildings.

End-to-End Security

Integrates NXP DESFire EV3, AES-256, and mutual TLS to the cloud, with cloud infrastructure options including AWS, Azure, and on-premises deployment.

Less Field Maintenance

Ultralow 14 μA consumption and a typical 24-month battery life help reduce maintenance interventions.

OTA Updates and Remote Management

OTA updates keep the firmware current without frequent site visits, simplifying management of distributed installations.

Lower Operating Cost

Robust hardware, cellular connectivity, and remote management help reduce total operating cost as the number of doors grows.

Technical Specifications

Key components & platform

  • Telit ME310G1-WW
  • NXP DESFire EV3
  • Multi-IMSI eSIM (23 countries)
  • 24 global LTE bands
  • 14 µA standby
  • 4× AA · ~24 months
  • AES-256 + mTLS
  • MQTT / LwM2M
  • IP65
  • 10,000-event audit log
CategorySpecification
CellularLTE Cat M1 / NB, multi-IMSI eSIM, coverage in 23 countries
Power4 AA batteries, typical 24-month battery life, low-battery alerts
MaterialsZinc alloy + SS304 stainless steel + tempered glass, IP65 rated
Mechanical life≥ 10 years mechanical working life
ConnectivityNFC credential (NXP DESFire EV3), OTA firmware updates
Firmware updateOTA over cellular; resumable; signed image; anti-rollback
Security updatesFree of charge for 10 years from the shipment date
Lock cylinderEuropean profile (DIN 18252) + oval/edge adapter kits, 30-70 mm doors
CertificationsCE, FCC, RED (EU), aligned with ISO 9001 / 13485
CybersecurityAES-256, secure element, mutual TLS to the cloud
CloudQumtrix Cloud, MQTT available / LwM2M, AWS / Azure / on-premises
Access methodsMobile app (iOS/Android), PIN, NFC card, mechanical emergency key
Audit Log10,000 events stored on-device and replicated to the cloud
Operating Temp-20 °C to +55 °C
Dimensions165 × 68 × 78 mm (H × W × D), 720 g
Built for B2B Projects

From Technical Evaluation to Deployment

A project-oriented solution where connectivity, door adaptation, and remote management must work together.

01 · Evaluation

Define Your Use Case

Tell us the approximate number of doors, deployment countries, installation type, and use case so we can assess the right configuration.

02 · Integración

Review the Architecture

Validate LTE Cat M1 / NB connectivity, cloud options, security, mortise profiles, and adapter kits against your project requirements.

03 · Proposal

Prepare the Next Step

With your project details, Qumtrix can help evaluate the configuration and prepare a commercial proposal for deployment.

OEM project, integration, or multi-site deployment? You can request a proposal or an NDA from this page to continue the evaluation with your team.
Frequently Asked Questions

Before Starting Your Deployment

The questions operators and integrators ask before starting a rollout — answered from the published specification.

What types of projects is the smart lock designed for?

Built for operators, integrators, and manufacturers managing multiple doors across hotels, apartments, student housing, co-living, offices, and other distributed facilities.

What cellular connectivity does it support?

Supports LTE Cat M1 and NB multiband. The configuration in the datasheet includes multi-IMSI eSIM and coverage in 23 countries.

How is a distributed installation managed?

OTA firmware updates and cloud communication simplify management of distributed installations and reduce maintenance visits — no local gateway or building network is required, and the lock keeps a 10,000-event local audit log that replicates automatically to the cloud.

Can it be adapted to different door configurations?

The solution supports four mortise profiles — 3585 / 4585 / 5085 / 6085 with the European profile (DIN 18252) — plus oval and edge adapter kits, for doors 30–70 mm thick.

Why choose an LTE Cat M1 / NB smart lock over hub-based or short-range wireless locks for B2B deployments?

Cellular smart locks eliminate the need for local gateways and on-site wireless network setup, significantly reducing deployment time and maintenance costs in large-scale properties such as hotels and multi-family apartment buildings.

How long does the battery last on the Qumtrix NB smart lock?

Powered by 4 AA batteries, the lock features an ultra-low standby current of 14 µA, delivering a typical battery life of up to 24 months under normal operating conditions.

What cloud platforms and cybersecurity protocols are supported?

The lock supports MQTT / LwM2M protocols with AES-256 encryption and mutual TLS (mTLS) on a hardware secure element with NXP DESFire EV3 credentials. It integrates natively with Qumtrix Cloud, AWS IoT Core, Azure IoT, or private on-premises servers.

Can we manage the locks from our own backend platform?

Yes. The lock can report to and be controlled from your own management backend. We can integrate against your server protocol or REST API, and we can also migrate you from an existing third-party management platform — so operators keep a single control plane for credentials, audit trails and firmware updates.

Does the smart lock need a separate network module or gateway?

No. It is a self-contained network module lock: the Telit ME310G1 LTE Cat M1/NB cellular module is integrated inside the lock, so there is no local gateway, router or extra network hardware to install, power or maintain. Each lock registers directly on the mobile network and is managed centrally over the air.

What are the shipping terms, the freight and the delivery time?

Goods are quoted FOB Shanghai Airport. The default carrier is DHL Economy, freight is prepaid by the seller and added to the invoice, and delivery to the airport is free of charge. Air freight takes 7–10 days and express courier 3–5 working days, depending on the destination region and the carrier’s official tracking. Main markets are Europe, the Middle East, the USA and South America; shipping is worldwide.

How are volume discounts and special projects handled?

Discounts are granted at the seller’s discretion according to the project volume. For special projects and long-term partners, terms and pricing are negotiable — tell us the expected volume and the deployment plan and we will quote accordingly.

What is your quality-assurance and return policy?

Every unit carries a 2-year warranty from the shipment date: defects caused by the product itself are repaired or replaced free of charge, and human damage is charged at parts cost only. Mechanical spare parts are guaranteed to be available for 15 years (cellular modules and batteries follow the upstream supplier’s policy). International returns and replacements follow a written RMA process — request within 15 business days, and never ship goods back before we approve the return and issue an RMA number. Duties, freight and other return costs are allocated according to the cause, and a return whose total cost exceeds 15% of the goods’ value may be refused or settled locally instead. Read the full quality-assurance and return policy.

How are firmware updates delivered, and can a bad update be reverted?

Over the air. An interrupted download resumes where it stopped, the image is signature-verified before the bootloader switches to it, and a lock refuses any version older than the one it is running. To roll back, the version is disabled in the OTA service and devices fall back to the previous build — no on-site work. Security updates are free of charge for 10 years from the shipment date. Security issues can be reported to sales@qumtrix.com, and a software bill of materials is available to integrators on request.

Ready to evaluate your connected access deployment?

Share the approximate number of doors, target deployment countries, and your use case. We will help evaluate the right configuration and prepare a commercial proposal.

Get a QuoteRequest an NDA

To accelerate the evaluation, please include the number of doors, target countries, and installation type whenever possible.
